Centrifugal Casting
  • Radiation Tube
  • Radiation Tube
  • Radiation Tube
  • Radiation Tube
  • Radiation Tube
  • Radiation Tube
  • Radiation Tube
  • Radiation Tube

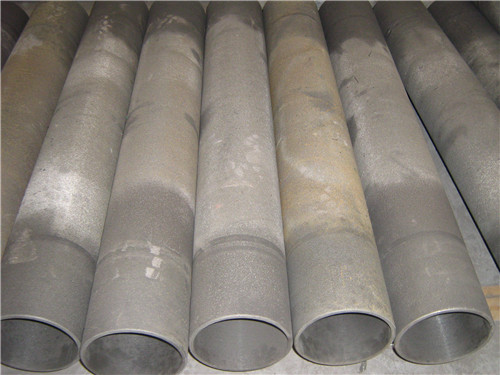

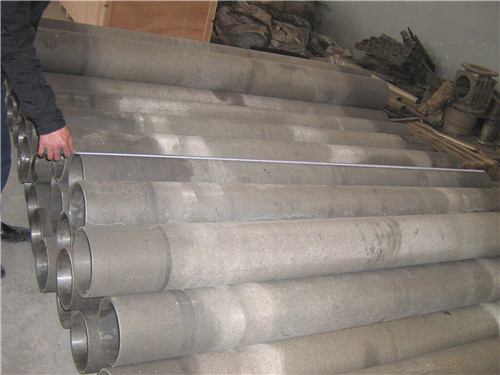

Radiation Tube

  • Description:
  • Product Range:Centrifugal Casting Pipe, Elbow, Radiation Pipe, Cylinder
    Size:StandardASTM A608/A608M  A297/A297Mm Or According to customer drawing
    Finished: Centrifugal Casting, Machining OD and ID

  • Contact Now
  • Description
  • Packing
  • FAQ
  • Product Range Centrifugal Casting Pipe, Elbow, Radiation Pipe, Cylinder
    Size: StandardASTM A608/A608M A297/A297Mm Or According to customer drawing
    Materials: HC30, HD50, HE35, HF30, HH30, HH33, HI35, HK30 ,HK40, HK50,HL30, HL40, 1.4865, 1.4848, 1.4849, 2.4879 or as customer's requirement HN40 HT50 HU50 HW50 HX50
    Finished: Centrifugal Casting, Machining OD and ID
    Packing : Rust Protection, Wooden Case, suitable for seafreight and airfreight
    Machine Equipement: Lathe,Baking Furnace for Shell Mold, Intermediate Frequency Melting Furnace,Centrifugal Casting Machinery, Saw Machiner, Milling Machinery
    Inspection Items: Chemical, Mechanical, X-Ray, Dye Penetrant, Hydraulic Press, Hardness, Ultrasonic Tester, Microscope,
    Application: Power Plant, Oil and Gas, Heat treatment Equipment, Water System
    Market: Southeast Asia, Europe, South America, Middle East
    Supply Capacity: 200 tons/Month
    Minimum Qty: 500KG
    Delivery Time: About 4-6 weeks since order confirmed
    Term of Trade: FOB, CIF, CFS, Ex Work, DDU
    Payment Term: T/T, L/C
  • Rust Protection, Wooden Case, suitable for seafreight and airfreight




  • 1.Where is coutry origin of raw materials to be used?
    All the raw materials is from Chinese famous steel manufacturer, Raw materials Quality is stable and guaranteed.


    2.Did you arrange inspection for raw materials before producing?
     Our QC will arrange inspection before producing for all the raw materials, including chemical, dimension, physical property


    3.How do you control the quality during producing process?
    During producing process, QC Person make inspection such as dimension, hardness, UT test, MT test in each stage.


    4.What certificate do you supply after finished production?
    Mill test Report, EN10204 3.1 certificate, all the documents and pictures for inspection process


    5.How do you keep the traceability for each batch goods?
    All the casting No., heat number will be uniqueness, QC keep all the documents is clearly, all the record report keep 10 years even more.


    6.How will you do when finding the unqualified goods?
    QC will make report timely, the rectification opinion will be convey to production department. Meantimes, sales and coordinator keep attention for process. The purpose is keep all the cargo quality is passed.


    7.How do you control the delivery?
    Winrock have own trucks, could delivery cargo to any port warehouse in China according to customer requirement. Meantimes, we cooperate with well-known freight forwarder, who have strong delivery and clearance Custom capability. That will keep the clearance smoothly and freight more safety.
